Delivery:
Current Delivery Time: 3 - 5 Days
Key Features:
- Spigot Diameter: 125mm
- Height above roof: 500mm
- Flashing collar: 500mm x 600mm
- Total gross length: 1156mm
- Suitable Pitch: 25° - 45°
- Total Gross Length: 1156mm
- Material: Injection moulded/Vacuum formed/Ubiflex construction.
- Application: For use on a pitched roof with Roof Tiles and Slates
- Extraction: Suitable for bathroom fans & cooker extractors
- Manufacturers code: 50142723
Description:

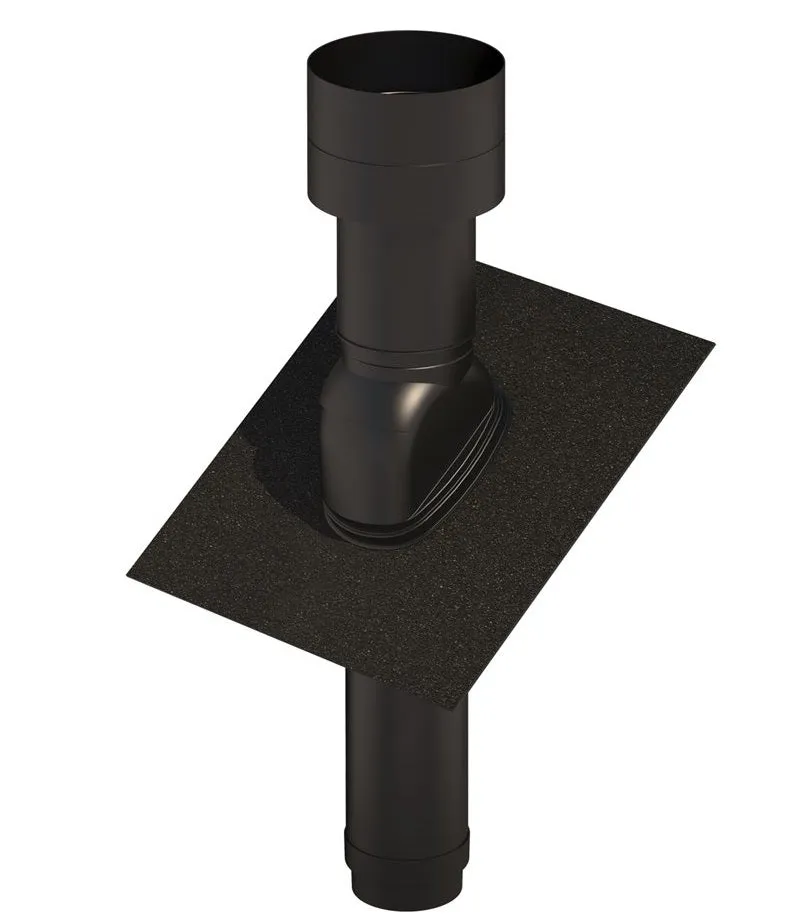

Ubbink universal insulated terminals are suitable for both tiled and slated roofs and come complete with a Ubiflex flashing. These units are suitable for roof pitches over 25° and for mechanical extraction. They are also insulated through the cowl.
Ubbink insulated terminals offer greater efficiency for the modern Ventilation Systems (Heat Recovery Domestic) when terminated through the pitch of a roof. They are suitable for natural (passive) and mechanical ventilation installations.
These units are suitable for roof pitches over 25° and for mechanical extraction.
Properties:
- Stack terminals for tiles/slates
- Insulated through to the cowl
- Mechanical extraction
- Minimum pitch of 25 degrees
Downloads & Data Sheets:
